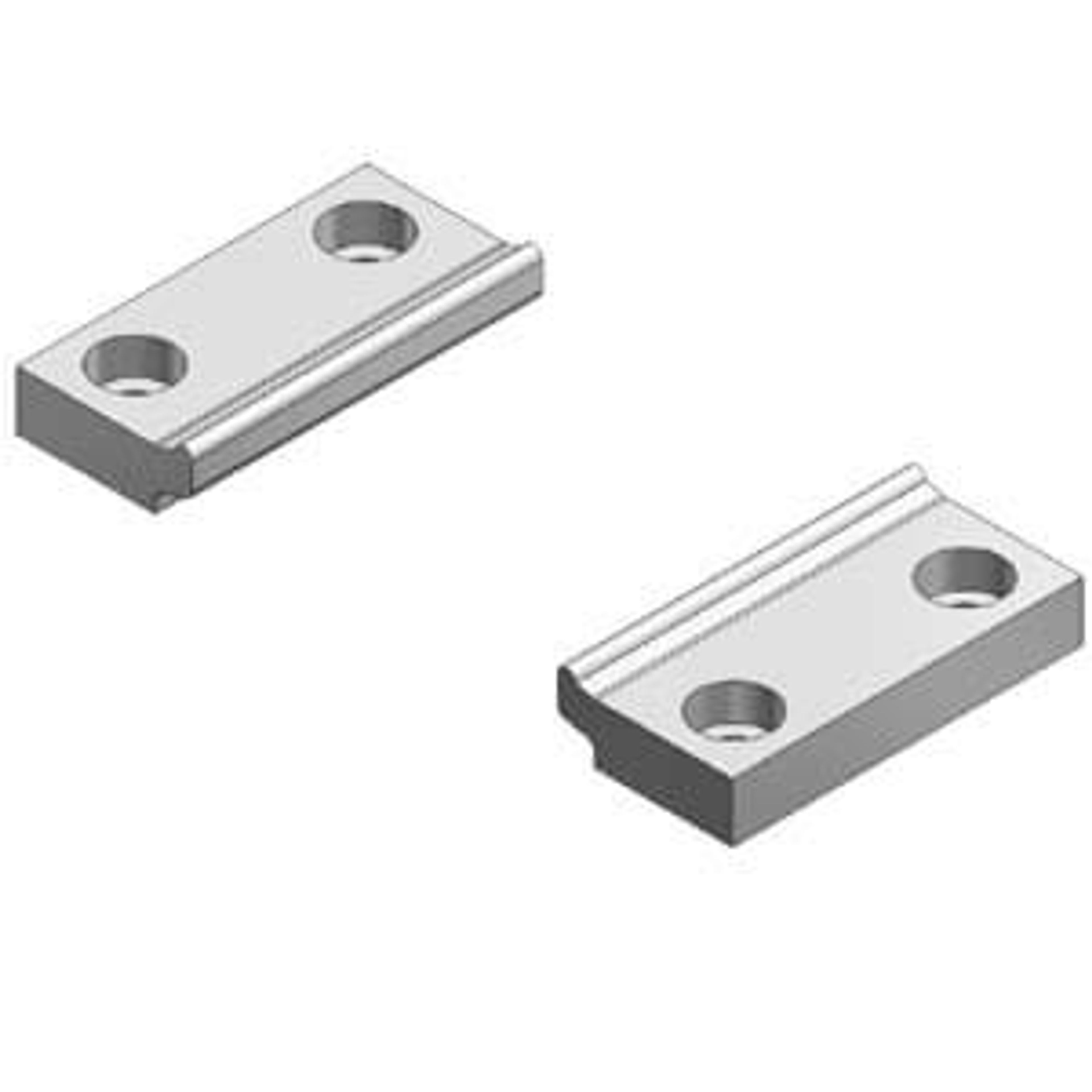

SMC Side Support B
Product Code: MY-S16B...
Available to Order
tech sheet
Details
Brand
SMC
Type
B
Bore Size mm
16
Height mm
13
Model
MY
Length mm
5
Width mm
26
Manufacturer
SMC
Specification
SMC Side Support B, SMC
Additional Variants
Product Name
Product Code
Type
Width mm
Application
Bore Size mm
Length mm
Height mm
Material
Model
List Price
A Short Type
50
Prevents cylinder tubes from sagging in long stroke applications
25
10
18
–
MY
Available to Order
–
64
Prevents cylinder tubes from sagging in long stroke applications Applicable to 16 20 25 32 40 50 and 63 mm bore sizes
32
14
25
–
MY
Available to Order
–
26
Prevents cylinder tubes from sagging in long stroke applications
16
5
13
Not specified
–
Available to Order
–
50
–
25
10
18
–
–
Available to Order
A Short Type
64
Prevents cylinder tubes from sagging in long stroke applications
32
14
25
–
MY
Available to Order
B Basic Type
80
Prevents cylinder tubes from sagging in long stroke applications
50
18
31
–
MY
Available to Order
–
80
Prevents cylinder tubes from sagging in long stroke applications
50, 63
18
31
–
MY3A/B Accessory Side Support
Available to Order
