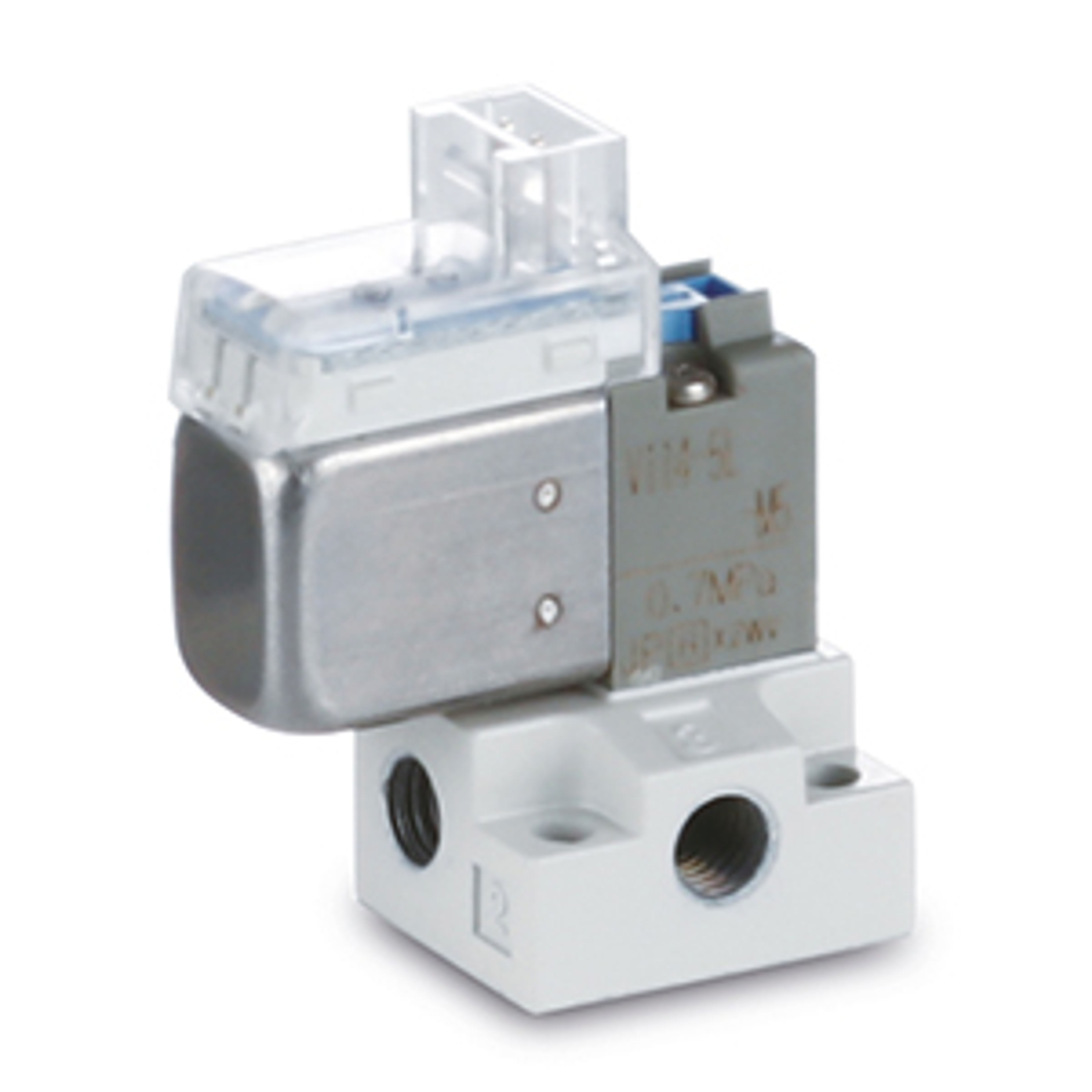

SMC 3 Port Solenoid Valve.
Product Code: V114-5LOU-M5...
Available to Order
tech sheet
Details
Flow LPM at 50 bar per minute
17
Compact
YES
Actuation
Normally Closed
Brand
SMC
Flow LPM
17
Electrical Connection
Plug Connector without Connector
Width mm
36
Length mm
29
Voltage
24 VDC
Height mm
16
Application
Piloting process valves and actuator applications
Feature
Ultra compact 3-port direct acting valve with large flow
Manual Override Detail
Non Locking Push
Port Size Metric
M5
Series
V100
Air Consumption LPM
0.35
Approvals
CE Certified
Manufacturer
SMC
Specification
SMC 3 Port Solenoid Valve, SMC
Additional Variants
Product Name
Product Code
Approvals
Width mm
Amps
Height mm
Port Size mm
Application
Actuation
Length mm
List Price
CE
–
–
–
–
–
Normally Closed
–
Available to Order
CE
10
0.015
24.7
M5
Piloting process valves or actuator applications
Normally Open
27
Available to Order
