M333-37809

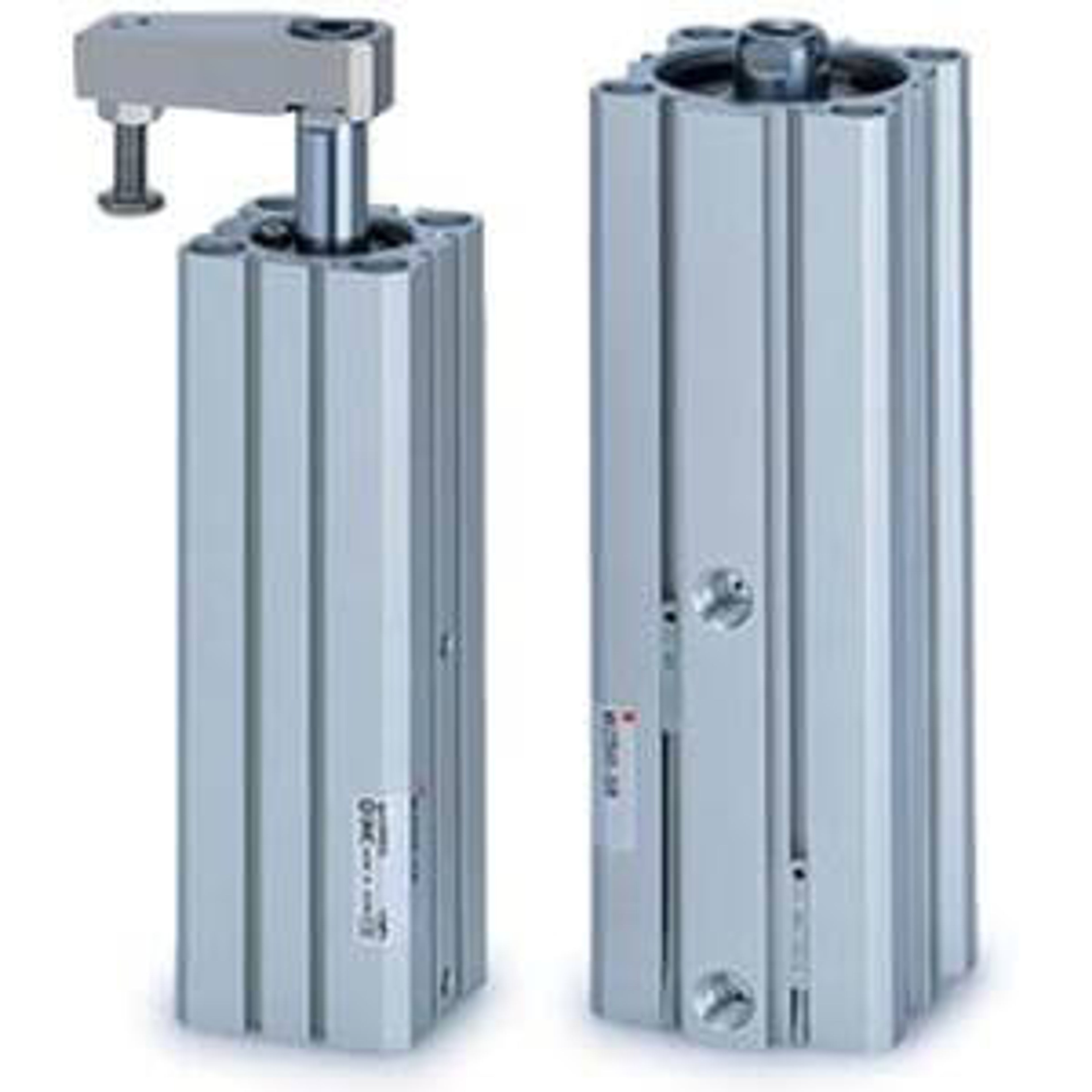

SMC Rotary Clamp Cylinder Bore=63 Str=20

Product Code: MK2TB63TF-20R
...

Available to Order

Details

Brand
SMC
Height mm
192
Rotation
Right Rotation
Mounting
B Through Hole Both Ends Tapped Common
Stroke Length mm
20
Bore Size mm
63
Width mm
84
Length mm
77
Manufacturer
SMC
Series
MK

Specification

SMC Rotary Clamp Cylinder Bore=63 Str=20, SMC

Additional Variants

Product Name
Product Code
Height mm
Stroke Length mm
Width mm
Series
Bore Size mm
Length mm
Rotation
Application
Actuation
Angle
Body Material
Operation
List Price
M333-37809

SMC Rotary Clamp Cylinder Bore=63 Str=50

MK2TB63TF-50R
256
50
84
MK
63
77
Right Rotation
–
–
–
–
–

Available to Order

M333-37809

SMC Rotary Clamp Cylinder Bore=32 Str=20

MK2TB32TF-20R
168
20
50
MK2T
32
45
Right Rotation
–
–
–
–
–

Available to Order

M333-37809

SMC Rotary Clamp Cylinder Bore=40 Str=20

MK2TB40TF-20L
172
20
57
MK
40
52
Left
Heavy duty clamping applications with rotary clamp function
–
–
–
–

Available to Order

M333-37809

SMC Rotary Clamp Cylinder Bore=50 Str=50

MK2TB50TF-50L
–
50
–
MK
50
–
Left Rotation
–
–
–
–
–

Available to Order

M333-37809

SMC Rotary Clamp Cylinder Bore=40 Str=10

MK2TB40TF-10L
152
10
57
MK
40
52
Left Rotation
–
–
–
–
–

Available to Order

M333-37809

SMC Rotary Clamp Cylinder Bore=50 Str=20

MK2TB50TF-20L
191
20
71
MK
50
64
Left Rotation
Heavy duty clamping applications with rotary clamp cylinder
Pneumatic
90deg
–
–

Available to Order

M333-37809

SMC Rotary Clamp Cylinder Bore=40 Str=20

MK2TB40TF-20R
172
20
57
MK
40
52
Right Rotation
Heavy duty clamping applications
–
90 degree clockwise or counter clockwise
–
–

Available to Order

M333-37809

SMC Rotary Clamp Cylinder Bore=32 Str=10

MK2TB32TF-10L
–
10
–
MK
32
–
Left Rotation
–
–
–
–
–

Available to Order

M333-37809

SMC Rotary Clamp Cylinder Bore=25 Str=10

MK2TB25-10R
–
10
–
MK
25
–
Right
Heavy duty clamping applications
–
90 degree clockwise or counter clockwise rotation
–
–

Available to Order

M333-37809

SMC Rotary Clamp Cylinder Bore=32 Str=10

MK2TB32TF-10R
148
10
50
MK2T
32
45
Right Rotation
–
–
–
–
–

Available to Order

M333-37809

SMC Rotary Clamp Cylinder Bore=32 Str=20

MK2TB32TF-20L
–
20
–
MK
32
–
Left Rotation
Heavy duty clamping applications
–
90 degree
Standard Female Thread
–

Available to Order

M333-37809

SMC Rotary Clamp Cylinder Bore=63 Str=50

MK2TB63TF-50L
256
50
84
MK
63
77
Left Rotation
Heavy duty clamping applications with rotary clamp cylinder
–
90 degree clockwise or counter clockwise rotation
–
–

Available to Order

M333-37809

SMC Rotary Clamp Cylinder Bore=20 Str=10

MK2TB20-10R
117
10
36
MK
20
36
Right Rotation
–
–
–
–
–

Available to Order

M333-37809

SMC Rotary Clamp Cylinder Bore=50 Str=20

MK2TB50TF-20R
191
20
71
MK
50
64
Right Rotation
Heavy duty clamping applications
–
90 degree clockwise or counter clockwise
–
–

Available to Order

M333-37809

SMC Rotary Clamp Cylinder Bore=20 Str=10

MK2TB20-10L
117
10
36
MK
20
36
Left
Heavy duty clamping applications
–
–
–
–

Available to Order

M333-37809

SMC Rotary Clamp Cylinder Bore=20 Str=20

MK2TB20-20R
137
20
36
MK
20
36
Right
Heavy duty clamping applications
–
90 degree clockwise or counter clockwise rotation
–
–

Available to Order

M333-37809

SMC Rotary Clamp Cylinder Bore=40 Str=10

MK2TB40TF-10R
–
10
–
MK
40
–
Right Rotation
–
–
–
–
–

Available to Order

M333-37809

SMC Rotary Clamp Cylinder Bore=50 Str=50

MK2TB50TF-50R
–
50
–
MK
50
–
Right Rotation
–
–
–
–
–

Available to Order

M333-37809

SMC Rotary Clamp Cylinder Bore=63 Str=20

MK2TB63TF-20L
192
20
84
MK
63
77
Left Rotation
–
–
–
–
–

Available to Order

M333-37809

SMC Rotary Clamp Cylinder Bore=25 Str=20

MK2TB25-20R
139
20
40
MK
25
40
Right
Heavy duty clamping applications with rotary clamp function
–
–
–
90 degree clockwise or counter clockwise rotation

Available to Order

View all 24 variants
